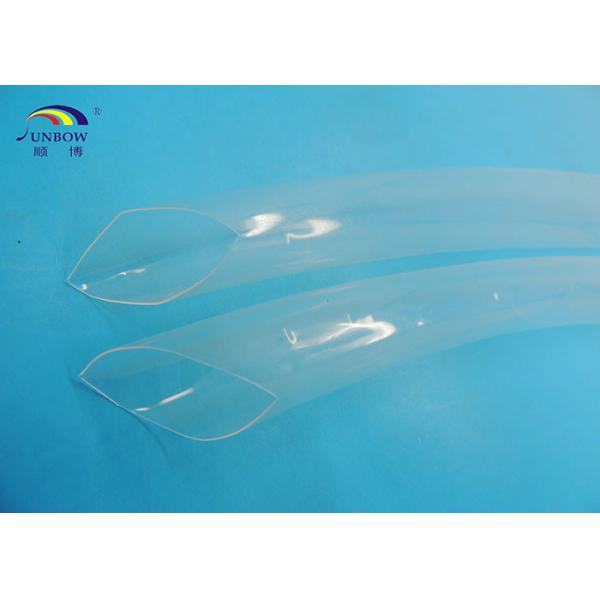

Semi-rigid thin wall PVDF heat shrink tube clear plastic tubing for electronics, automotive and military application
Model Number: SB-PVDF-HST
Operating Temperature: -55°C - 175°C
Structure
These thin wall heat shrinkable tube are the polyvinylidene fluoride composed and treated in radiation modification. These tubing possesses good wear & heat resistant, oil & chemical solvent resistant and flame retarding.
Characteristics
1. High withstand to abrasion and cut-through
2. Excellent chemical and solvent resistance
3. Shrink Temperature: 175°C
4. Shrink ratio: 2:1
Usage
Semi-rigid thin wall PVDF heat shrink tubing, ideal for electronic, automotive and military applications requiring protection and see-through inspection. It can be widely used in high temperature, industrial fuels, solvents and chemical erosion of weld, terminal and the connection to protect the cables .
Specification
| Item | Test Method | Unit | Specifications |
| Min. shrink temperature | - | °C | 155 |
| Operation temperature | - | °C | -55~175 |
| Specific Gravity | ASTM D792 | g/cm3 | 1.78 |
| Tensile strength | ASTM D2671 | M Pa | ≥25 |
| Elongation at break | ASTM D2671 | % | ≥550 |
| After Aging Elongation | 250°C,168h | % | ≥500 |
| Heat Shock | 300°C, 4h | - | No Cracking |
| Cold Bend | -55°C, 4h | - | No Cracking |
| Volume Resistivity | ASTM D257 | Ω.cm | ≥1014 |
| Flammability Rating | UL-224 | VW-1 | Pass |
Dimension
| Size | As supplied (mm) | After recovery (mm) | Standard Package |
| Inch | mm | Internal Diameter (mm) | Internal Diameter (mm) | Wall Thickness (mm) | M/Spool |
| 3/64 | 1.2 | 1.2 | 0.6 | 0.25±0.05 | 200 |
| 1/16 | 1.6 | 1.6 | 0.8 | 0.25±0.05 | 200 |
| 3/32 | 2.4 | 2.4 | 1.2 | 0.25±0.05 | 200 |
| 1/8 | 3.2 | 3.2 | 1.6 | 0.25±0.05 | 100 |
| 3/16 | 4.8 | 4.8 | 2.4 | 0.25±0.05 | 100 |
| 1/4 | 6.4 | 6.4 | 3.2 | 0.30±0.05 | 100 |
| 3/8 | 9.5 | 9.5 | 4.8 | 0.30±0.05 | 50 |
| 1/2 | 12.7 | 12.7 | 6.4 | 0.30±0.05 | 50 |
| 3/4 | 19.1 | 19.1 | 9.5 | 0.42±0.05 | 50 |
| 1 | 25.4 | 25.4 | 12.7 | 0.50±0.05 | 50 |
| 1-1/2 | 38.1 | 38.1 | 19.1 | 0.50±0.05 | 50 |
Advantages
- Excellent wear, heat resistance.
- Good oil and chemical solvent resistance
- Excellent flame retardant
- High withstand to abrasion and sut through
- Shrink temperature: 175 degree C
- Shrink ratio: 2:1
- Fast shrinking
- Very soft and flexible
- Various sizes available, from 1.2mm to 38.1mm
- Excellent tensile strength
- Heat and color resistance
- Anti-aging
- Fast delivery time
- Free sample available
