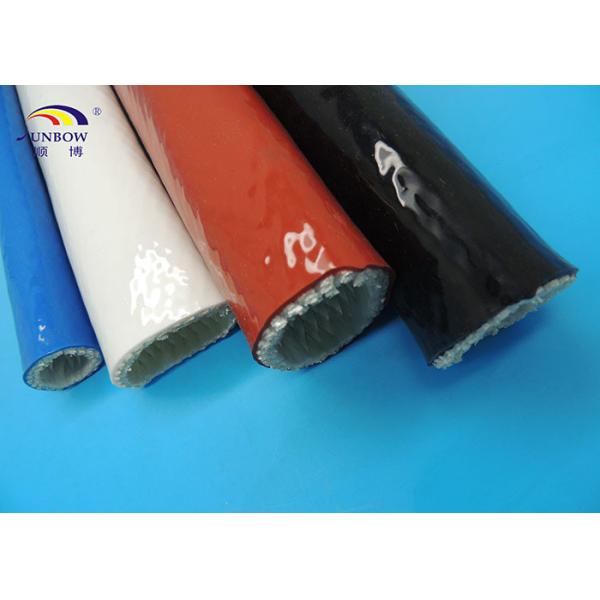

Colorful Silicone Coated Fibreglass Fire Sleeving Fireproof Sleeve
Model Number: SB-SGS-FH
Working Temperature: -65℃ ~ 260℃ (It can work in 1650 degree high temperature for 15~30 seconds.)
Description
Fireproof Sleeve is the non-alkali fiberglass braided sleeving coated with silicone resin.
Fireproof Sleeve possesses great heat insulation and flame-resistance performance.
Application
Fireproof Sleeve is mainly used in steel plants, smelters, glass and other thermal places to protect the hose, hose assemblies and cables. It also helps maintain line temperature and reduce environmental overheating and overcooling.
Main Characteristics
1) Impede heat lost and favor to save energy
2) No harmful by-products of combustion
3) Easy to install, when selecting protective hose sleeving, measure the outside diameter of your hose and add approximately 1/4."
4) Impede heat radiation of flame Sheds molten spatter of metals and glass
5) Resistant to slag and resin build-up, protect against abrasion, solvents and corrosive chemicals
6) Protect operators against scorching contacts of metal hoses and pipes
Specification
| Inner Diameter (mm) | Wall Thickness (mm) | Standard Package (m/roll) |
| Nominal | Tolerance |
| 6.0 | +0.5 | 1.2 | 20 |
| 10.0 | +1.0 | 1.5 | 20 |
| 15.0 | +1.0 | 2.2 | 20 |
| 20.0 | +1.2 | 2.5 | 20 |
| 25.0 | +1.5 | 2.8 | 20 |
| 30.0 | +1.5 | 3.0 | 20 |
| 35.0 | +2.0 | 3.2 | 20 |
| 40.0 | +2.0 | 3.5 | 20 |
| 45.0 | +2.0 | 3.8 | 20 |
| 50.0 | +2.5 | 4.0 | 20 |
| 55.0 | +2.5 | 4.2 | 15 |
| 60.0 | +3.0 | 4.5 | 15 |
| 65.0 | +3.0 | 4.5 | 15 |
| 70.0 | +3.0 | 4.8 | 15 |
| 75.0 | +3.0 | 4.8 | 15 |
| 80.0 | +3.5 | 5.0 | 15 |
| 90.0 | +3.5 | 5.6 | 15 |
| 100.0 | +3.5 | 5.6 | 15 |
Color: Standard color is rust red, other color available upon request.
SUNBOW main products
1. Fiberglass sleeve (Material: Silicone resin, Silicone rubber, Acrylic resin, PU resin)
2. Heat shrink tube (Material: PE, PVC, Silicone rubber, PTFE, PET, FEP, PVDF)
3. Expandable sleeve (Material: PET, PP, Nylon)
4. Corrugated tubing (Material: PE, PP, PA)
5. PVC tube, Silicone rubber, PTFE tube, FEP tube, PFA tube, PVDF tube, etc.
Competitive Advantages
1) 1650C high temperature resistant
2) high quality non-alkali fiberglass yarn
3) free samples are available
4) ISO 9001 : 2008 TS 16949 standard factory manufacturer
5) high-tech enterprise in China
6) with 12-year manufacturing experience
7) factory direct sales
8) best price high quality product
9) quick delivery time
10) quick response for feedback
11) few complaints from customers
12) more competitive price for VIP customers
13) convenient situation near to seaport
