7KV Insulation Fiberglass Sleeving with Silicone Coating 2.0mm ID
1. Model Number: SB-SGS-70
Working temperature: 200ºC
2. Structure
7KV Insulation Fiberglass Sleeving with Silicone Coating 2.0mm ID is non-alkali fiberglass braided then coated with silicone resin and treated in high temperature.
3. Specification
| Item | Performance | Note |
| Dielectric Breakdown Voltage KV AC | Minimum Average | ≥7.0 | Before Aging |
| Minimum Single Point | ≥5.0 |
| Minimum Average | ≥3.5 | 6 Hrs* 245±5ºC 245±5ºC 6Hrs Aging |
| Minimum Single Point | ≥2.5 |
| No Breakdown | / | 1 KV in 2% Salt Water |
| Thermal Endurance | No Indication of Crack | OK | 1440 Hrs* 235±5ºC 235±5ºC 1440Hrs Aging |
| Fire Resistance | VW-1 | OK | UL 1441 |
4. Usage
SB-SGS-70 sleeving with its good dielectric strength, flexibility and flame retarding properties make it high performance qualities. It can be widely used in insulated or partially insulated conductors, bus bars, component leads, or assemblies of electrical components etc.
5. Dimension
| Inside Diameter | Wall Thickness (mm) | Standard Package (m/roll) |
| Nominal (mm) | Tolerance (mm) |
| φ0.5 | +0.2, -0.1 | ≥0.37 | 200 |
| φ1.0 | +0.2, -0.1 | ≥0.37 | 200 |
| φ1.5 | +0.2, -0.1 | ≥0.37 | 200 |
| φ2.0 | +0.2, -0.1 | ≥0.37 | 200 |
| φ2.5 | +0.3, -0.1 | ≥0.42 | 200 |
| φ3.0 | +0.3, -0.1 | ≥0.42 | 200 |
| φ4.0 | +0.3, -0.1 | ≥0.42 | 200 |
| φ4.5 | +0.3, -0.1 | ≥0.51 | 100 |
| φ5.0 | +0.3, -0.1 | ≥0.51 | 100 |
| φ6.0 | +0.3, -0.1 | ≥0.51 | 100 |
| φ7.0 | +0.3, -0.1 | ≥0.56 | 100 |
| φ8.0 | +0.3, -0.1 | ≥0.56 | 100 |
| φ9.0 | +0.3, -0.1 | ≥0.66 | 100 |
| φ10.0 | +0.3, -0.1 | ≥0.66 | 100 |
| φ12.0 | +1.0, -1.0 | ≥0.66 | 50 |
| φ14.0 | +1.0, -1.0 | ≥0.66 | 50 |
| φ16.0 | +1.0, -1.0 | ≥0.66 | 50 |
| φ18.0 | +1.0, -1.0 | ≥0.66 | 50 |
| φ20.0 | +1.0, -1.0 | ≥0.76 | 25 |
| φ25.0 | +1.0, -1.0 | ≥0.76 | 25 |
| φ30.0 | +1.0, -1.0 | ≥0.76 | 25 |
6. Competitive Advantages
1) ISO 9001 : 2008 TS 16949 standard factory manufacturer
2) high-tech enterprise in China
3) with 12-year manufacturing experience
4) factory direct sales
5) best price high quality product
6) quick delivery time
7) quick response for feedback
8) few complaints from customers
9) more competitive price for VIP customers
10) convenient situation near to seaport
11) UL , RoHS , Reach approval
12) the only factory in China for all sizes and full colors to pass UL, RoHS, Reach certifications
13) high quality non-alkali fiberglass yarn
14) cutting service and special customized service can be available
15) 3KV & 10KV tube of this type can be customized
7. Package Information
0.5mm ~ 4.0mm, 200 meters/roll;
4.5mm ~ 10.0mm, 100 meters/roll;
12.0mm ~ 18.0mm, 50 meters/roll;
20.0mm ~ 30.0mm, 25 meters/roll.
Carton Size 35*35*60cm
8. Sunbow Progress
1) Established in Oct. 2003, Sunbow is mainly engaged in research & development, manufacture and sale of various kinds of insulation sleeving. Such as fiberglass sleeving, PTFE tube, silicone rubber tube, PE heat shrink tube and PVC tube etc;
2) Due to expansion in business, Sunbow factory moved to Sunbow Industrial Park, 2nd Industrial Zone, Xiacun Community, Gongming , Guangming New District, Shenzhen;
3) In Oct. 2008, Sunbow achieved success of general taxpayer qualification (Namely Sunbow can open 17% VAT invoices by ourselves;
4) In Oct. 2009, Sunbow achieved success in ISO 9001:2008 quality management system certification;
5) In Feb. 2010, Sunbow successfully obtained UZIQ2: E333178 safety certificate by UL lab for fiberglass sleeving coated silicone resin;
6) In June, 2010, Sunbow set a new branch office in Hong Kong. It named HONG KONG SUNBOW INDUSTRIES CO., LIMITED;
7) In Aug. 2010, Sunbow applied for import and export , Sunbow has independent rights for import and export;
8) In Nov. 2010, the registered trademark of Shenzhen Sunbow Insulation Materials MFG. CO., LTD was approved entry to force;
9) In Feb. 2011, Sunbow obtained American UZFT2: E333177 certificate and Canadian CSA UZFT8:333177 certificate for fiberglass sleeving coated silicone resin;
10) In Jan. 2013, Sunbow successfully obtained YDPU2: E360625 safety certificate by UL lab for PE shrinkable tubing, PTFE tubing and silicone rubber tubing;
11) In Apr. 2014, Sunbow successfully obtained YDQS2: E467953 safety certificate by UL alb for PVC tubing;
12) In May, 2015, Sunbow successfully gained TS16949 certificate for automobile industry.

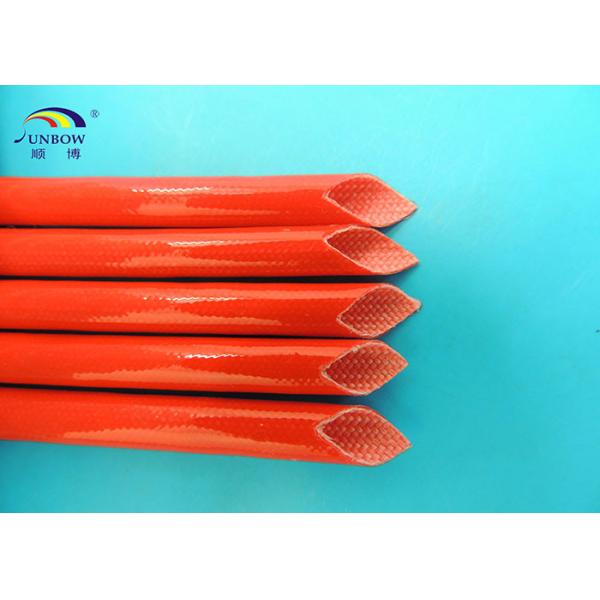

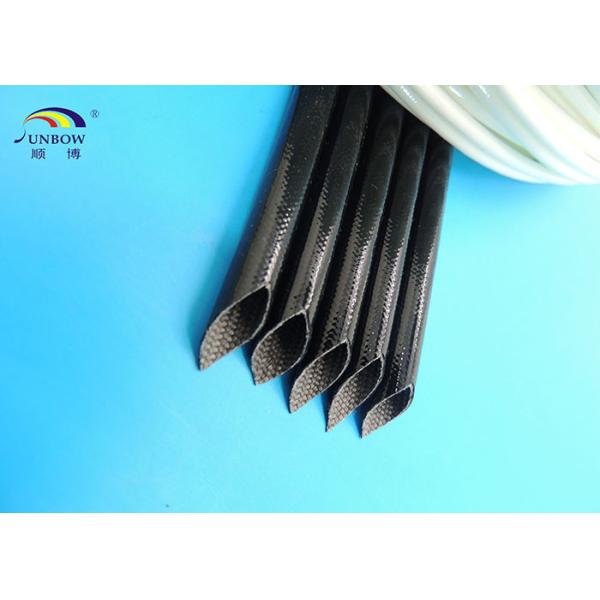

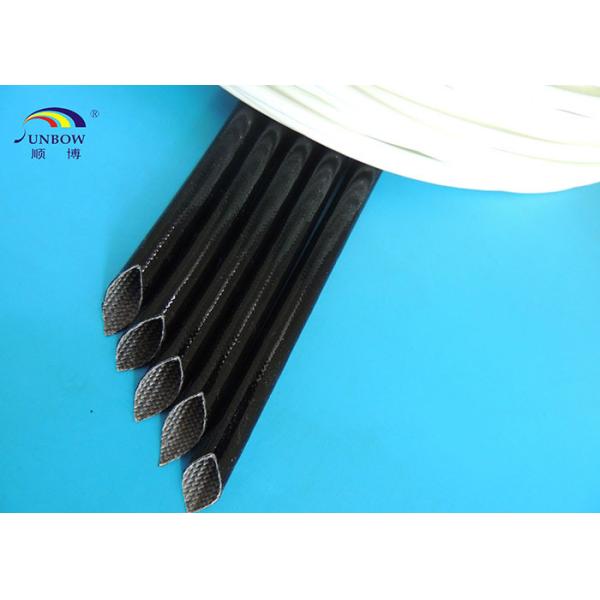

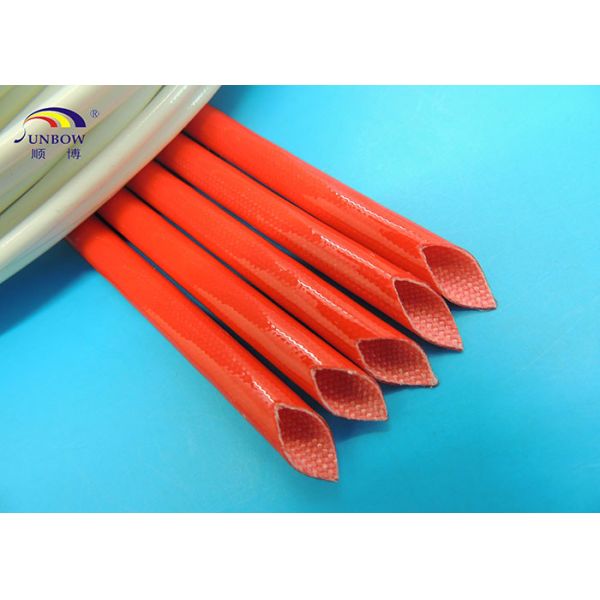

9. More Pictures View
