200℃ High Temperature Resistant 4KV Silicone Coated Fiberglass Sleeving for Transformers

Name: 200 High Temperature Resistant 4KV Silicone Coated Fiberglass Sleeving for Transformers
Brand: Sunbow
Price: 1 USD

Wholesale 200℃ High Temperature Resistant 4KV Silicone Coated Fiberglass Sleeving for Transformers from china suppliers

Brand Name : Sunbow

Model Number : SB-SGS-40

Certification : UL , RoHS , Reach , CSA

Place of Origin : Shenzhen, Guangdong, China

MOQ : 1000 Meters each size each color

Payment Terms : T/T, Western Union, L/C

Supply Ability : 600000 Meters / Month

Delivery Time : 3 ~ 7 Working Days

Packaging Details : 0.5mm ~ 4.0mm, 200 meters/roll; 4.5mm ~ 10.0mm, 100 meters/roll; 12.0mm ~ 18.0mm, 50 meters/roll; 20.0mm ~ 30.0mm, 25 meters/roll. Carton Size 35*35*60cm

Working Temperature : 200℃

Breakdown Voltage : 4000V

Material : Non-alkali Fiberglass Yarn

Color : Red

Size : 0.5mm ~ 35.0mm

Properties : Flexible , Flame Retardant , Eco-friendly , Good Dielectric Strength

Flame Retardant Rating : VW-1 UL 1441

Application : Insulators, Electrical Appliance, Wires ...

Contact Now

200℃ High Temperature Resistant 4KV Silicone Fiberglasss Sleeving for Transformers/ Generator/AC motor/ Wire harness

Model Number: SB-SGS-40

200℃ High Temperature Resistant Silicone Fiberglasss Sleeving for Transformers is non-alkali fiberglass braided then coated with silicone resin and treated in high temperature. Silicone Fiberglass sleeving with its good dielectric strength, flexibility and flame retarding properties make it high performance qualities. It can be widely used in insulated or partially insulated conductors, bus bars, component leads, or assemblies of electrical components etc.

Specification

Item	Performance		Note
Dielectric Breakdown Voltage KV AC	Minimum Average	≥4.0	Before Aging
	Minimum Single Point	≥3.0	Before Aging
	Minimum Average	≥3.0	6 Hrs* 245±5ºC 245±5ºC 6Hrs Aging
	Minimum Single Point	≥2.0	6 Hrs* 245±5ºC 245±5ºC 6Hrs Aging
Thermal Endurance	No Indication of Crack	OK	6 Hrs* 245±5ºC 245±5ºC 6Hrs Aging
Fire Resistance	VW-1	OK	UL 1441

Dimension

Inside Diameter		Wall Thickness (mm)	Standard Package (m/roll)
Nominal(mm)	Tolerance(mm)	Wall Thickness (mm)	Standard Package (m/roll)
φ0.5	+0.2, -0.1	≥0.37	200
φ1.0	+0.2, -0.1	≥0.37	200
φ1.5	+0.2, -0.1	≥0.37	200
φ2.0	+0.2, -0.1	≥0.37	200
φ2.5	+0.3, -0.1	≥0.42	200
φ3.0	+0.3, -0.1	≥0.42	200
φ4.0	+0.3, -0.1	≥0.42	200
φ4.5	+0.3, -0.1	≥0.51	100
φ5.0	+0.3, -0.1	≥0.51	100
φ6.0	+0.3, -0.1	≥0.51	100
φ7.0	+0.3, -0.1	≥0.56	100
φ8.0	+0.3, -0.1	≥0.56	100
φ9.0	+0.3, -0.1	≥0.66	100
φ10.0	+0.3, -0.1	≥0.66	100
φ12.0	+1.0, -1.0	≥0.66	50
φ14.0	+1.0, -1.0	≥0.66	50
φ16.0	+1.0, -1.0	≥0.66	50
φ18.0	+1.0, -1.0	≥0.66	50
φ20.0	+1.0, -1.0	≥0.76	25
φ25.0	+1.0, -1.0	≥0.76	25
φ30.0	+1.0, -1.0	≥0.76	25

Package Information

0.5mm ~ 4.0mm, 200 meters/roll;

4.5mm ~ 10.0mm, 100 meters/roll;

12.0mm ~ 18.0mm, 50 meters/roll;

20.0mm ~ 30.0mm, 25 meters/roll.

Carton Size 35*35*60cm

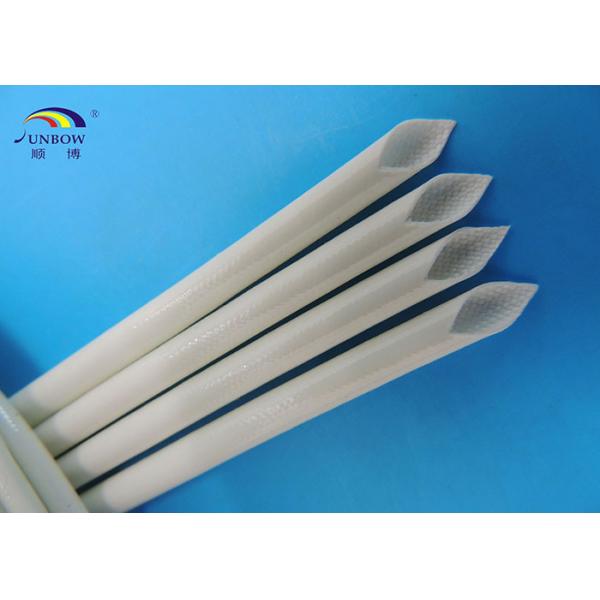

Pictures Show

Product Tags:

silicone rubber fiberglass sleeving

silicone coated fiberglass sleeving

200℃ High Temperature Resistant 4KV Silicone Coated Fiberglass Sleeving for Transformers Images
