Flame Retardant Red Silicone Fiberglass Sleeve For Insulating Protection
1. Description of goods
The material content of the SB-SGS-40 is Non-Alkali Fiberglass braided then coated with silicone resin and treated in high temperature.
Working temperature: 200℃
2. Characteristics
1). Good dielectric strength, flexibility and flame retarding properties ;
2). Dielectric breakdown voltage: ≥4.0 KV ;
3). Working temperature: 200℃
4). Flame Retardant Rating: UL1441 VW-1 ;
5). Environmental protection standard: ROHS;
6). Standard color: White
3. Range of application
It can be widely used in insulated or partially insulated conductors, bus bars, component leads, or assemblies of electrical components etc.
4. Specification
| ITEM | PERFORMANCE) | NOTE |
| DIELECTRIC BREAKDOWN VOLTAGE KV AC | MINIMUM AVERAGE | ≥4.0 | BEFORE AGED |
| MINIMUM SINGLE POINT | ≥3.0 |
| MINIMUM AVERAGE | ≥3.0 | 6 HRS* 245±5°C 245±5°C 6HRS AGING |
| MINIMUM SINGLE POINT | ≥2.0 |
| THERMAL ENDURANCE | NO INDICATION OF CRACK | OK | 6 HRS* 245±5°C 245±5°C 6HRS AGING |
| FIRE RESISTANCE | VW-1 | OK | UL 1441 |
5. Dimension
| Inside Diameter | Wall Thickness (mm) | Standard Package (m/roll) |
| Nominal(mm) | Tolerance(mm) |
| φ0.5 | +0.2, -0.1 | ≥0.37 | 200 |
| φ1.0 | +0.2, -0.1 | ≥0.37 | 200 |
| φ1.5 | +0.2, -0.1 | ≥0.37 | 200 |
| φ2.0 | +0.2, -0.1 | ≥0.37 | 200 |
| φ2.5 | +0.3, -0.1 | ≥0.42 | 200 |
| φ3.0 | +0.3, -0.1 | ≥0.42 | 200 |
| φ4.0 | +0.3, -0.1 | ≥0.42 | 200 |
| φ4.5 | +0.3, -0.1 | ≥0.51 | 100 |
| φ5.0 | +0.3, -0.1 | ≥0.51 | 100 |
| φ6.0 | +0.3, -0.1 | ≥0.51 | 100 |
| φ7.0 | +0.3, -0.1 | ≥0.56 | 100 |
| φ8.0 | +0.3, -0.1 | ≥0.56 | 100 |
| φ9.0 | +0.3, -0.1 | ≥0.66 | 100 |
| φ10.0 | +0.3, -0.1 | ≥0.66 | 100 |
| φ12.0 | +1.0, -1.0 | ≥0.66 | 50 |
| φ14.0 | +1.0, -1.0 | ≥0.66 | 50 |
| φ16.0 | +1.0, -1.0 | ≥0.66 | 50 |
| φ18.0 | +1.0, -1.0 | ≥0.66 | 50 |
| φ20.0 | +1.0, -1.0 | ≥0.76 | 25 |
| φ25.0 | +1.0, -1.0 | ≥0.76 | 25 |
| φ30.0 | +1.0, -1.0 | ≥0.76 | 25 |
6. Color:
Standard color is white, other color available upon request .

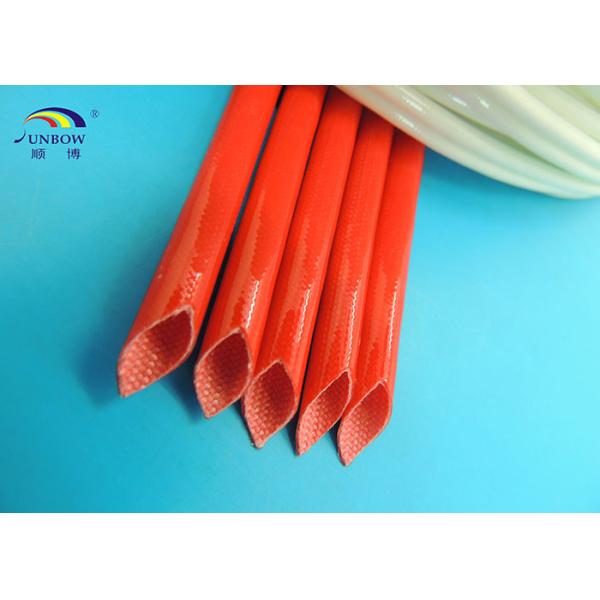

7. Pictures of goods
8. Packing informations and shipping
Size 0.5~4.0mm 200m/roll;
Size 4.5~10.0mm 100m/roll;
Size 12.0~18.0mm 50m/roll;
Size 20.0~30.0mm 25m/roll.
10. Our Services
1). 5~7 quick time production;
2). One year quality guarantee;
3). Prompt feedback;
4). 24 hours on line service.
5). Free sample for your approval
6). OEM production
7). ODM ability
8). OEM package
12. FAQ
Q : Are you a factory or trading company ?
A: No, we are a factory, can offer best quality product and reasonable price for you.
Q: Can you accept sample order?
A: Yes, we accept samples with little and reasonable charge.
Q: What is your MOQ?
A: Normally, 5000 Meters per color.
Q:What is your delivery time?Can we short it in 7 days or less?
A: 3 days for sample, 3-20 days for mass production. (depend on quantity)
Q: What is your payment terms?
A: T/T, Western Union, L/C
Q: How can I get my order? How can I know you sent the goods.
A: We will send you the goods by UPS, DHL, Fedex, Oversea Shipment or other forwarder, all with tracking number.
Q:How about your quality?
A: Try a small order, you will have your judgement!
